TLL Syringes for Liquid Diluter/Dispenser

Our syringes are designed to work with most industry standard pump designs e.g. Tecan Cavro

Features and Benefits:

Designed for volumes of 25 µL to 100 mL
Luer or ¼-28 threaded end caps

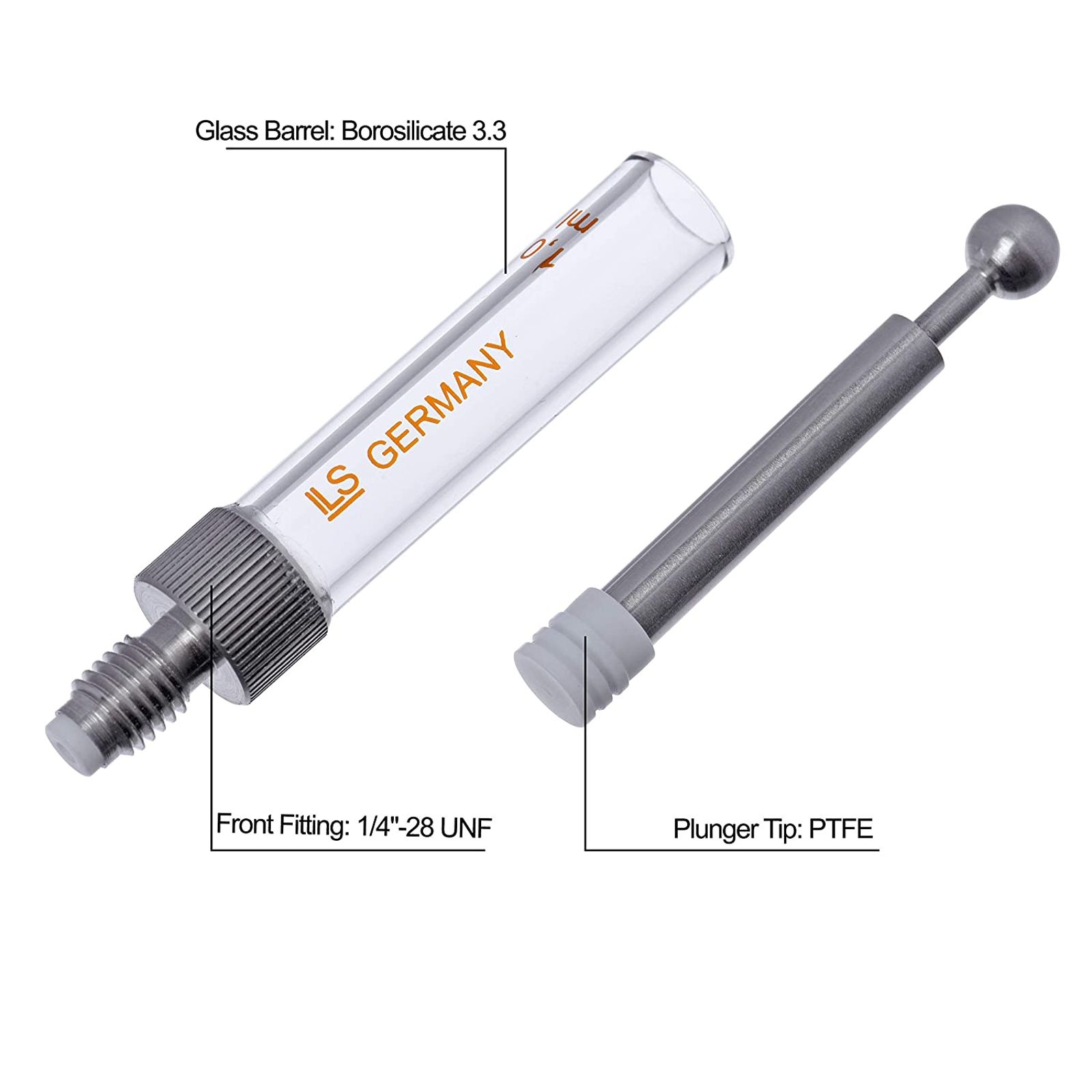

Glass Barrel: Borosilicate 3.3
Broad variety of syringe interfaces
Seals available in PTFE, UHMWPE, or custom UHMWPE blends
Customized designs and materials to suit application requirements

About TLL Syringes

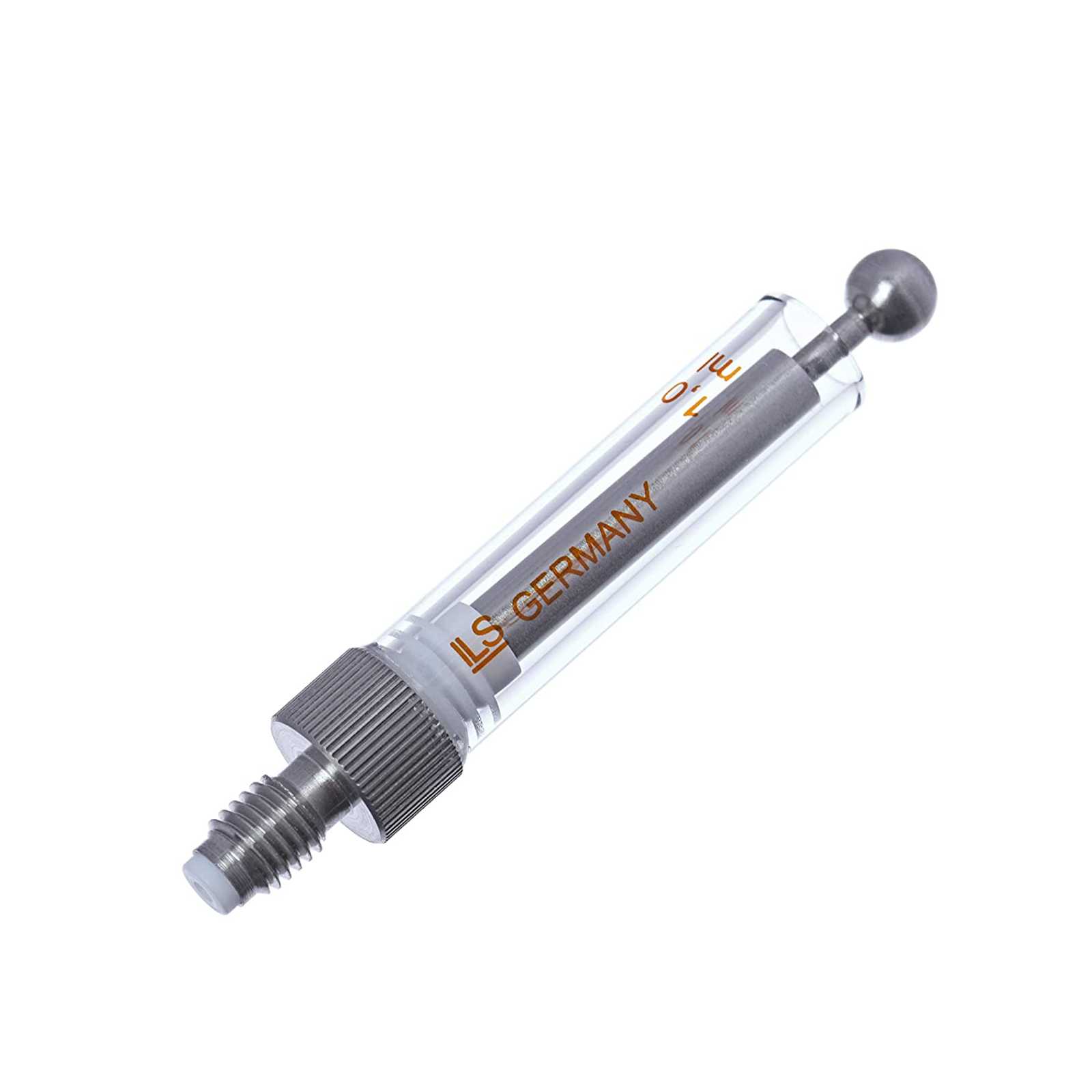

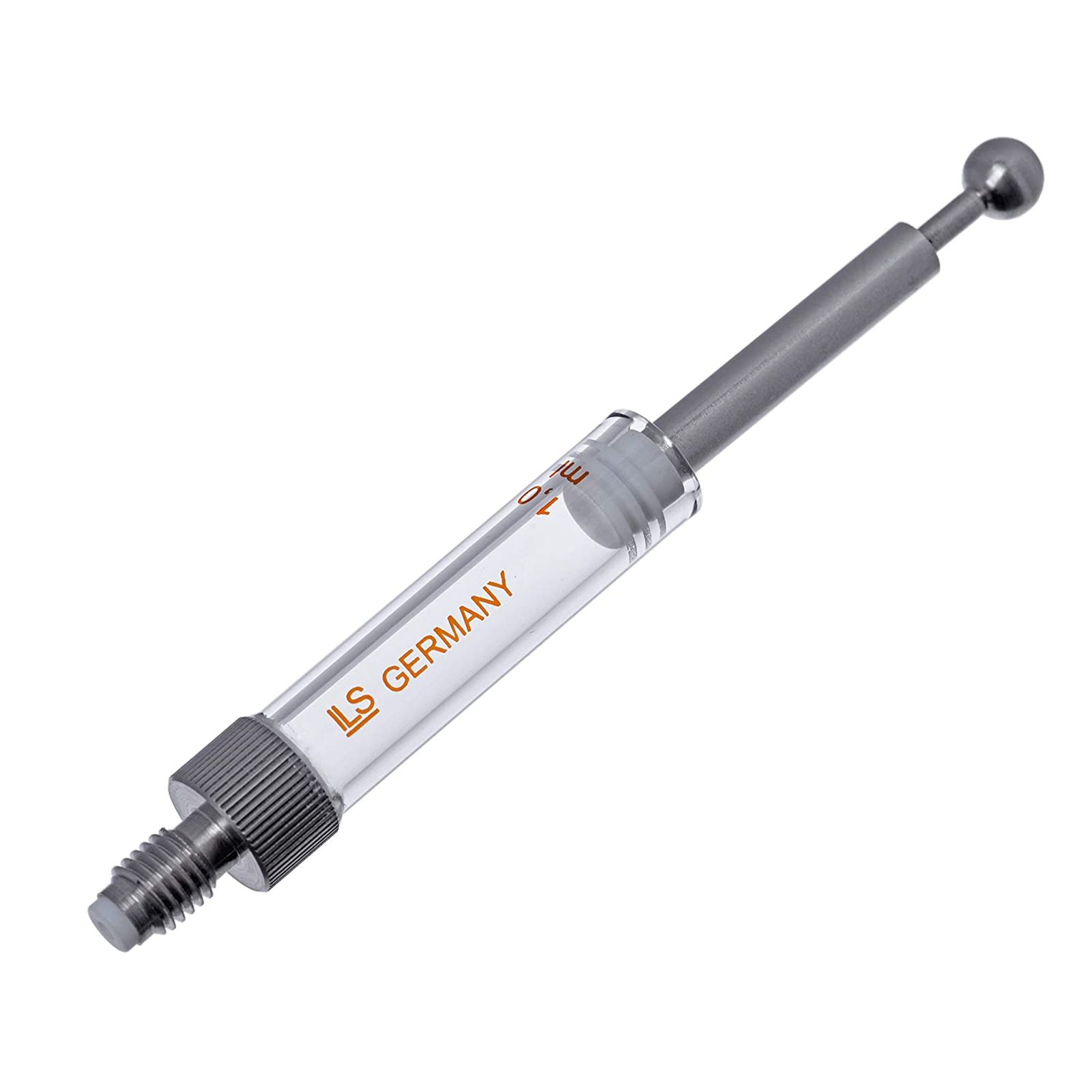

Series TLL syringe with a glass barrel made from Borosilicate 3.3 designed for volumes of 25 μL to 100 mL. A high chemical resistance makes this syringe a perfect heavy-duty syringes.

The syringe is manufactured from high-quality borosilicate glass, that is heat and shock resistant, which ultimately protects against breakage from shock and sudden or extreme fluctuations in temperature. This type of ultra-low expansion glass endows the syringe with maximum chemical resistance, outstanding degree of calibration and superior precision. The ILS TLL Syringe Series can also be used for many liquid handling tasks, such as injecting or dosing, however, it can also be applied to remove or inject gas. The most common applications include infusing, dispensing reagents, calibration, aspirating, pipetting and sampling.

The plungers in the glass syringe move more smoothly, which leverages to an especially high level of precision. Because of their high precision, great tightness and chemical resistance, ILS microsyringes are chosen whenever heavy-duty syringes are necessary; most commonly used as a high-quality replacement in laboratory and clinical instruments.

Applications

Liquid Diluter / Dispenser e.g. compatible with Hamilton Microlab 500/900

Examples of Compatible Instruments

Instrumentation Multistat III
Technicon
Hamilton Microlab 400/500/900/M/Digital Dilutor
Behring BLN Module III
Boehringer Dilutrend
Cooper / Technicon RA XT/500/100
Electro Autoloader I-III
Multistat III
Mannheim ES300

PTFE - Seal

Chemically Resistant
Heavy Duty Syringes

Volume	Stroke	Plunger Tip	Part No.
12.5 µl	30 mm	PTFE	2658415
25 µl	30 mm	PTFE	2658515
50 µl	30 mm	PTFE	2658615
100 µl	30 mm	PTFE	2658715
125 µl	30 mm	PTFE	2658714
250 µl	30 mm	PTFE	2658815
500 µl	30 mm	PTFE	2658915
1.0 ml	30 mm	PTFE	2658014
1.25 ml	30 mm	PTFE	2658015
2.5 ml	30 mm	PTFE	2658035
5.0 ml	30 mm	PTFE	2658055
12.5 ml	30 mm	PTFE	2658074

PE - Seal

Long Lifetime
Good resistance to strong buffers and other aqueous solution

Volume	Stroke	Plunger Tip	Part No.
50 µl	60 mm	PE	2643618
100 µl	60 mm	PE	2643718
250 µl	60 mm	PE	2643818
500 µl	60 mm	PE	2643918
1.0 ml	60 mm	PE	2643018
2.5 ml	60 mm	PE	2643038
5.0 ml	60 mm	PE	2643058
10.0 ml	60 mm	PE	2643078
25.0 ml	60 mm	PE	2643095

Modified PTFE - Seals

Specially designed for handling of strong buffers and other aqueous solutions.
The modified PFTE-seals guaranteed, extended lifetime under heavy duty conditions.

Volume	Stroke	Plunger Tip	Part No.
25 µl	60 mm	PTFE	2641517
50 µl	60 mm	PTFE	2641617
100 µl	60 mm	PTFE	2641717
250 µl	60 mm	PTFE	2641817
500 µl	60 mm	PTFE	2641917
1.0 ml	60 mm	PTFE	2641017
2.5 ml	60 mm	PTFE	2641037
5.0 ml	60 mm	PTFE	2641057
10.0 ml	60 mm	PTFE	2641077
