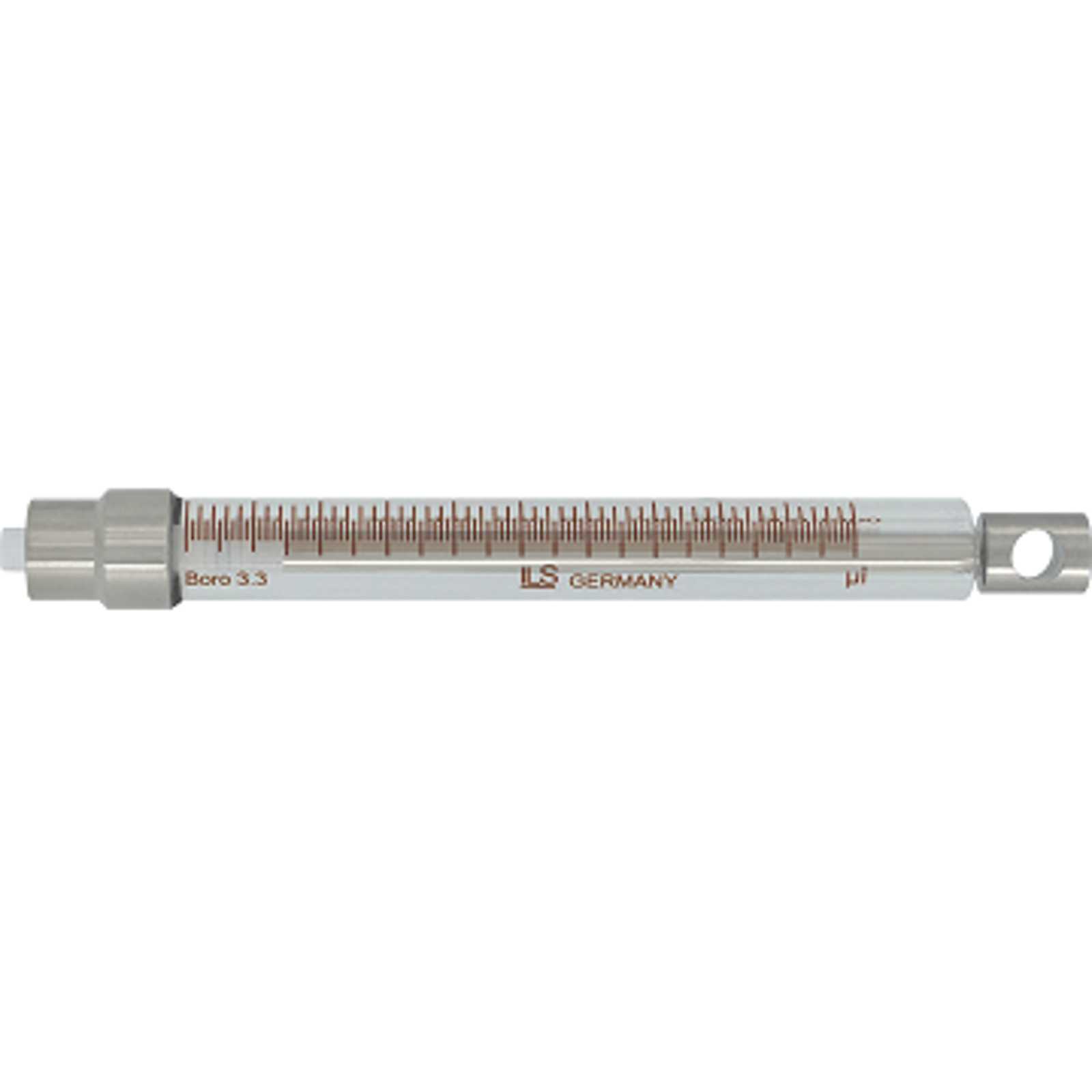

XL Syringes for Syringe Pumps | Microsyringes

Our Prime series syringes are designed to work with most industry standard pump designs e.g. Tecan Cavro

Features and Benefits:

Designed for volumes of 25 µL to 50 mL
Luer or ¼-28 threaded end caps
Glass Barrel: Borosilicate 3.3
Broad variety of syringe interfaces
Seals available in PTFE, UHMWPE, or custom UHMWPE blends
Customized designs and materials to suit application requirements

Tecan Cavro XL 3000
Cavro XL syringe pump
Perkin Elmer Multiprobe II/Janus
Caliper Sciclone ALH 3000
BD FACS MultiSet
Beckman Coulter Prep Plus
Behr behrotest, CGA EOS 890/Plus
Maihak TOCOR 101
Moritex EX-Multi
Robots
Roches Cobas Integral
Spark Triathlon
Tecan MiniPrep 50/75
Tecan Minilyser/Miniprep 60/75'Mini Swift
Thermo Data Pro
Wiener Lab Metrolab 2300 Plus

Syringe pumps for liquid handling applications/pipetting e.g. Tecan Cavro syringe pumps

PTFE - Seal

Chemically Resistant
Heavy Duty Syringes

Volume	Stroke	Plunger Tip	Part No.
25 µl	60 mm	PTFE	2607511
50 µl	60 mm	PTFE	2607611
100 µl	60 mm	PTFE	2607711
250 µl	60 mm	PTFE	2607811
500 µl	60 mm	PTFE	2607911
1.0 ml	60 mm	PTFE	2607013
2.5 ml	60 mm	PTFE	2607033
5.0 ml	60 mm	PTFE	2607053
10.0 ml	60 mm	PTFE	2607073
25.0 ml	60 mm	PTFE	2607096
50.0 ml	60 mm	PTFE	2607103

PE - Seal

Long Lifetime
Good resistance to strong buffers and other aqueous solution

Volume	Stroke	Plunger Tip	Part No.
50 µl	60 mm	PE	2645618
100 µl	60 mm	PE	2645718
250 µl	60 mm	PE	2645818
500 µl	60 mm	PE	2645918
1.0 ml	60 mm	PE	2645018
2.5 ml	60 mm	PE	2645038
5.0 ml	60 mm	PE	2645058
10.0 ml	60 mm	PE	2645078

Modified PTFE - Seals

Specially designed for handling of strong buffers and other aqueous solutions.
The modified PFTE-seals guaranteed, extended lifetime under heavy duty conditions.

Volume	Stroke	Plunger Tip	Part No.
25 µl	60 mm	PTFE	2645517
50 µl	60 mm	PTFE	2645617
100 µl	60 mm	PTFE	2645717
250 µl	60 mm	PTFE	2645817
500 µl	60 mm	PTFE	2645917
1.0 ml	60 mm	PTFE	2645017
2.5 ml	60 mm	PTFE	2645037
5.0 ml	60 mm	PTFE	2645057
10.0 ml	60 mm	PTFE	2645077
25.0 ml	60 mm	PTFE	2645097
